Overview
Key Highlights
EVERY ANGLE COVERED. EVERY INCIDENT DOCUMENTED.
Irrefutable video. Every journey.
Commercial vehicles are disproportionately involved in blind spot incidents. The system eliminates those blind spots and creates a video record that protects your business from fraudulent claims and disputed liability.
Resolve claims faster. Negotiate better.
Fleets equipped with the EVOview 360 are better positioned to negotiate insurance premiums and resolve incidents quickly using on-board footage rather than costly legal disputes.
Real-time alerts. Zero blind spots.
Whether in congested city streets, tight loading docks, or on the highway, drivers receive instant alerts for lane departure, forward collision, and merging hazards — reducing risk and driver stress across the longest vehicle configurations
Up and running in under 60 seconds.
Auto-calibration requires no specialist and completes in under one minute. A wide 10-32V voltage range means fast installation across mixed fleets with minimal vehicle downtime.
Specifications
| Specification | Detail |
|---|---|
| Video Input | Max. 6CH × 1080P AHD @ 25/30fps |
| Display Mode | 2D / 3D switchable |
| Output Resolution | 1080P / 720P / D1 |
| Storage | 1 × 512GB SD card + 1 × 2TB SSD |
| Video Encoding | H.264, Max. 6CH × 1080P @ 15fps |
| Power Supply | 10–32V DC |
| Operating Current | < 2A / 12V |
| Operating Temp | -20°C to +70°C (customizable to -40°C to +85°C) |
| Storage Temp | -40°C to +105°C |
| Humidity | 10%–95% |
| Night Vision | 0.1 lux (no IR required) |
| RTSP Latency | < 200ms |
| Radar Sensors | Ultrasonic & microwave radar compatible |
| GPS | Standard (Acceleration chip included) |
| Network | Ethernet / WiFi / 4G (optional) |
| Waterproof Rating | IP69K |
Warranty
See Everything. Miss Nothing.

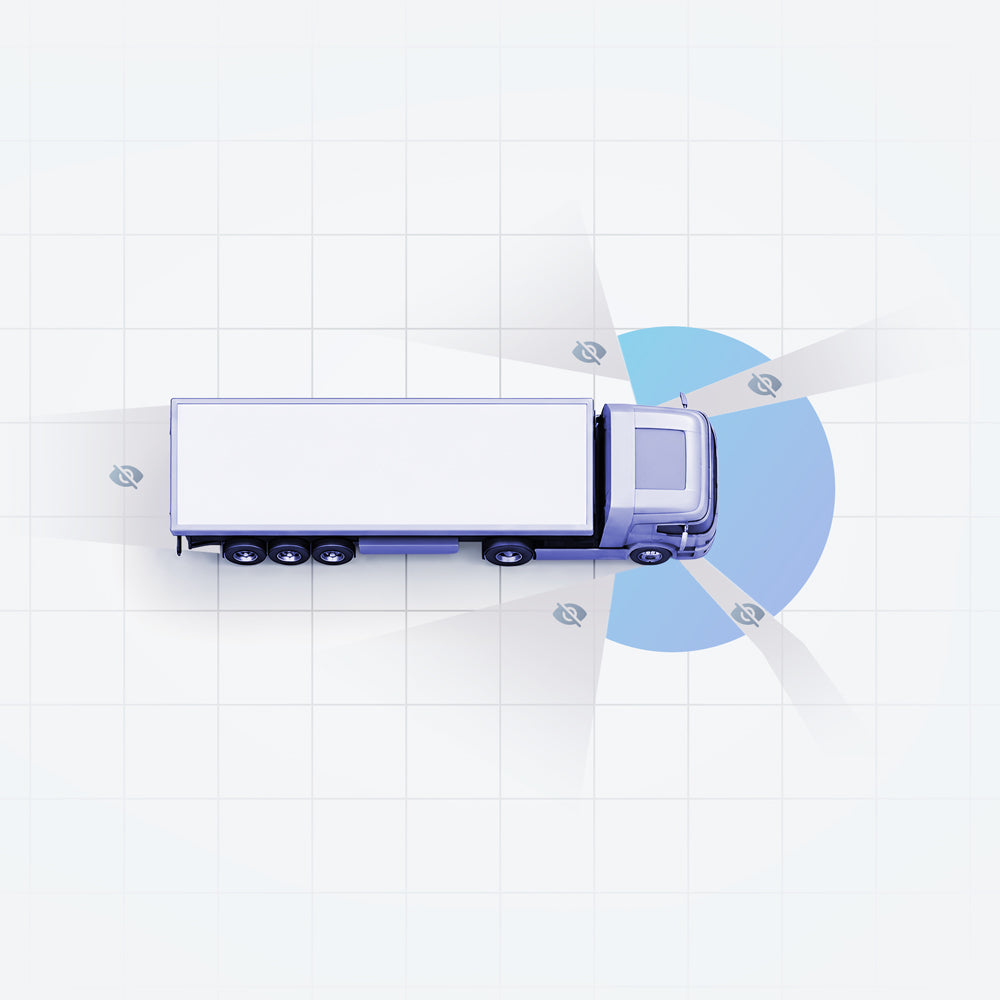

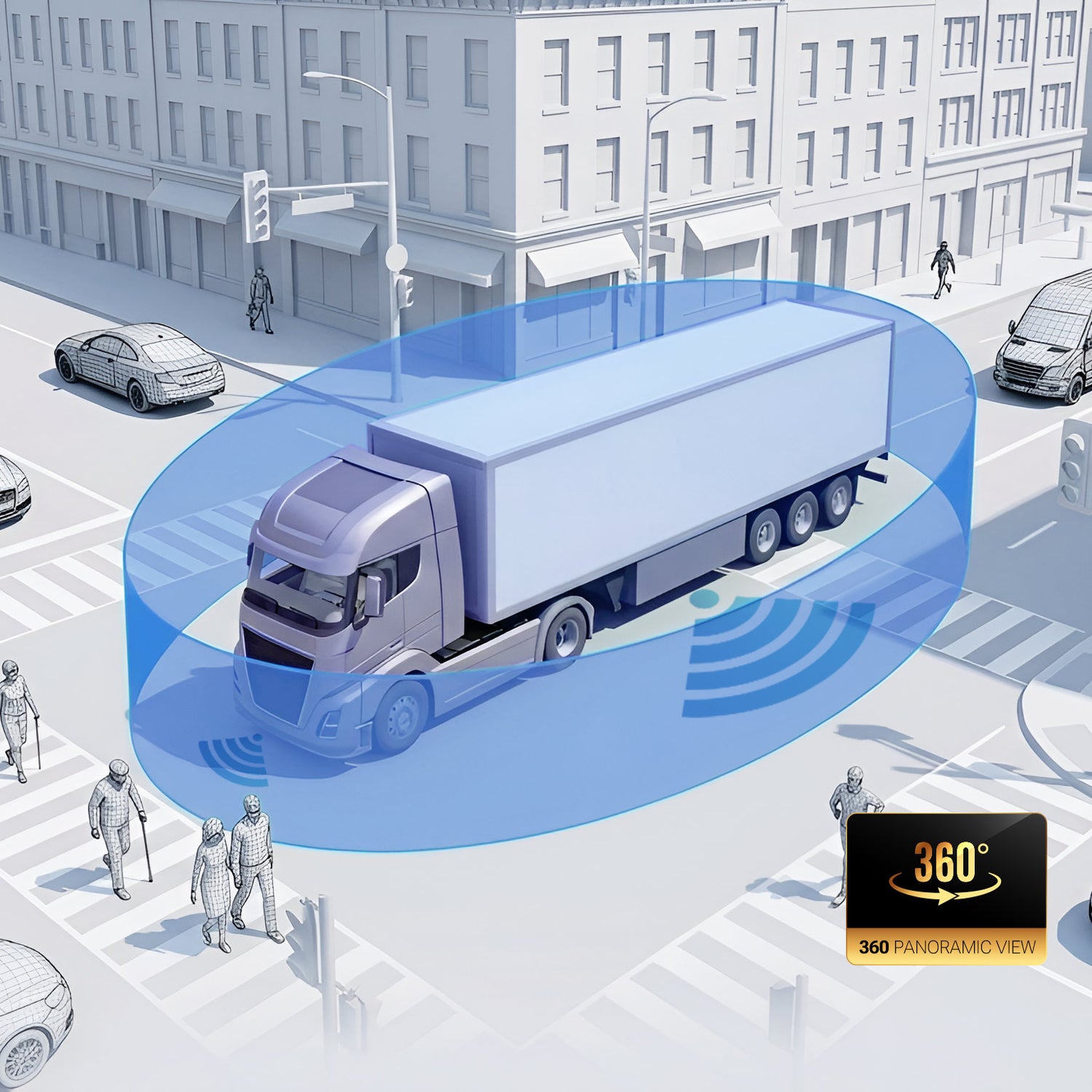

Eliminating the Areas You Can’t See
Blind spots represent the areas around a vehicle that drivers simply cannot see, and they remain one of the most dangerous and overlooked risks in commercial driving.

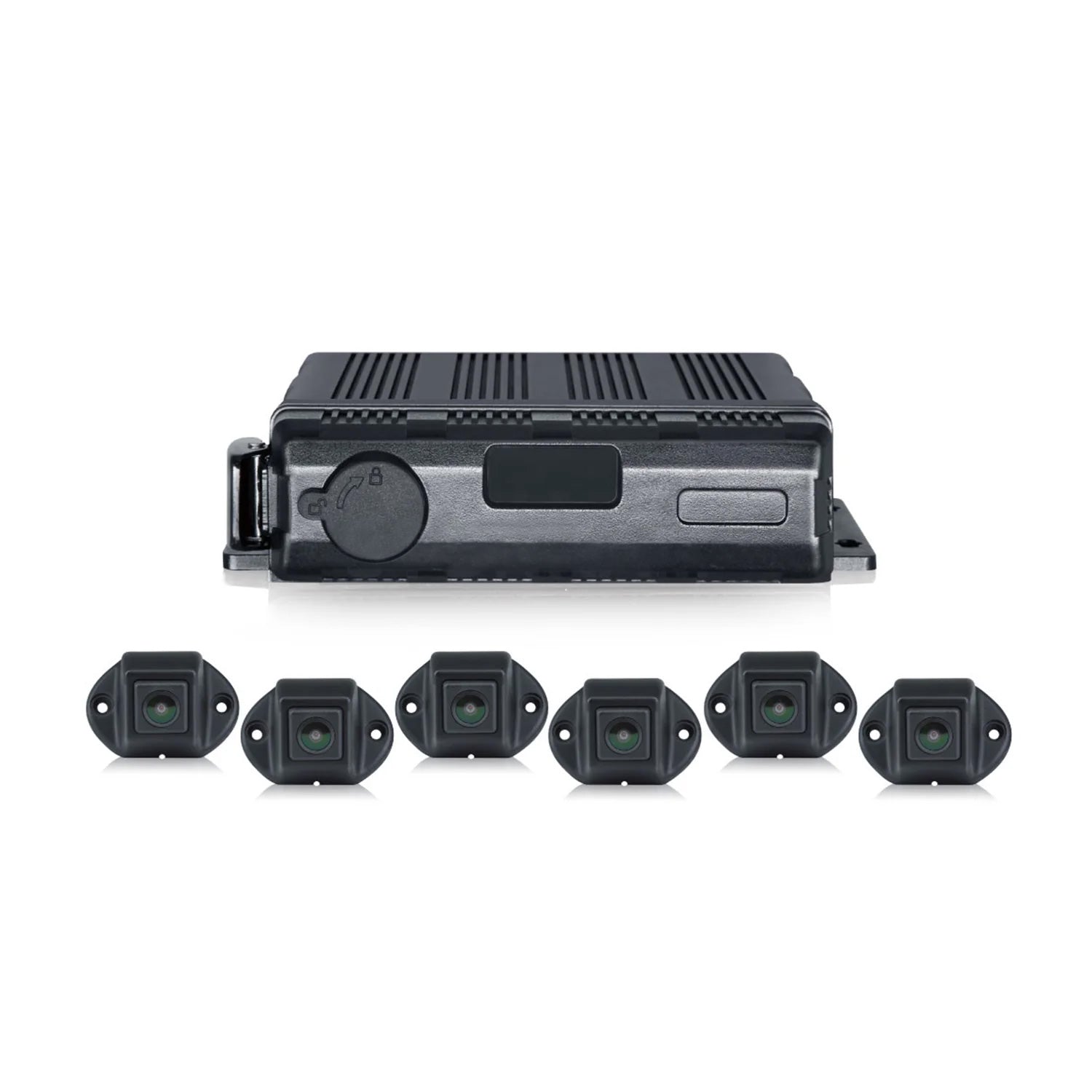

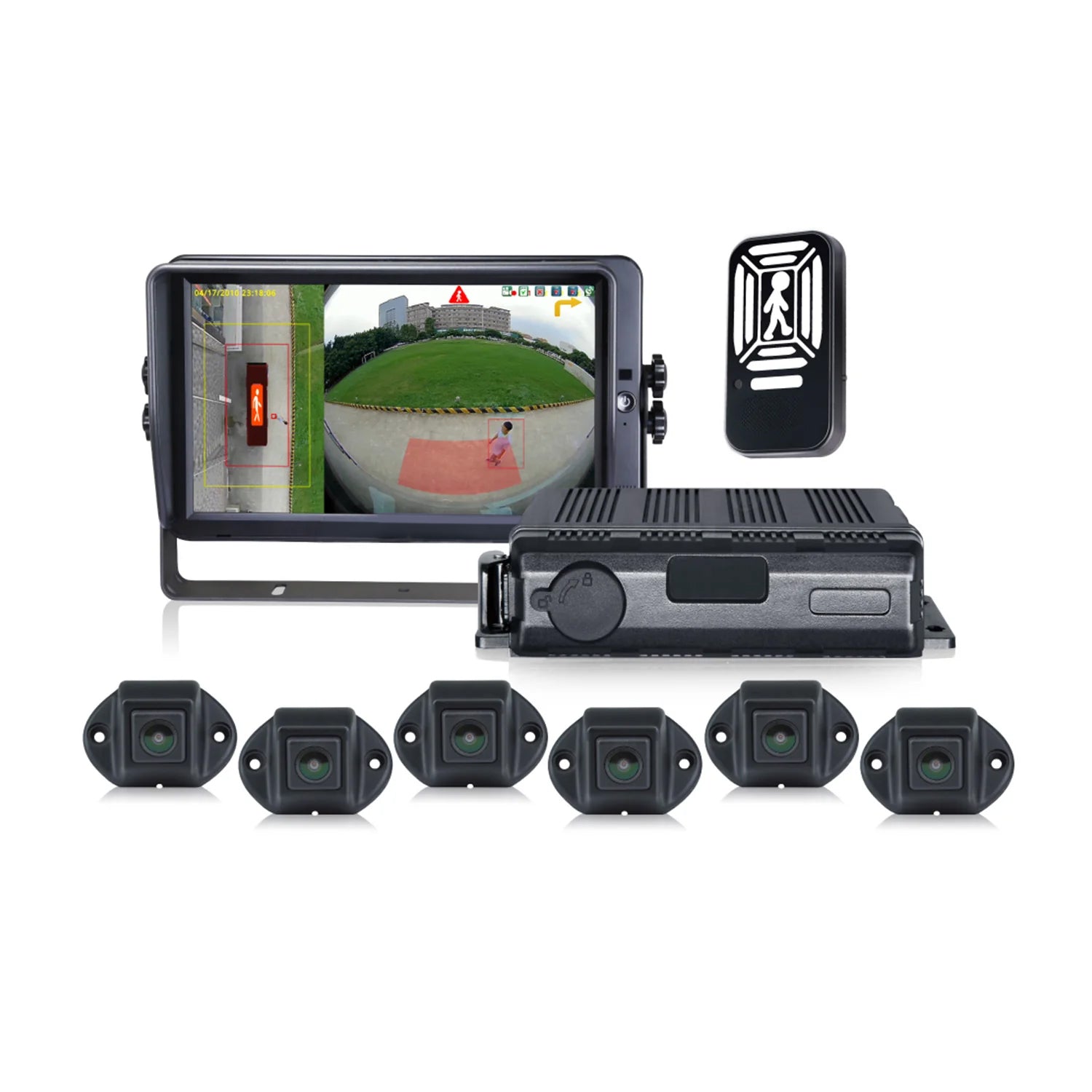

Engineered specifically for super-long vehicles such as articulated buses, cranes, long trailers, and container trucks, the system uses six ultra-wide-angle 1080P HD cameras seamlessly stitched together to deliver a true 360-degree panoramic bird’s-eye view with zero blind spots. It also supports 4-channel and 2-channel configurations and can be expanded via network switch to meet the monitoring demands of virtually any vehicle type.
Fast, Effortless Calibration
Designed for minimal downtime, the system completes automatic calibration in under one minute using just six randomly placed calibration mats, operable via touchscreen or remote control. Accurate, reliable, and requiring no specialist setup, it gets your vehicle back on the road with minimal disruption to operations.

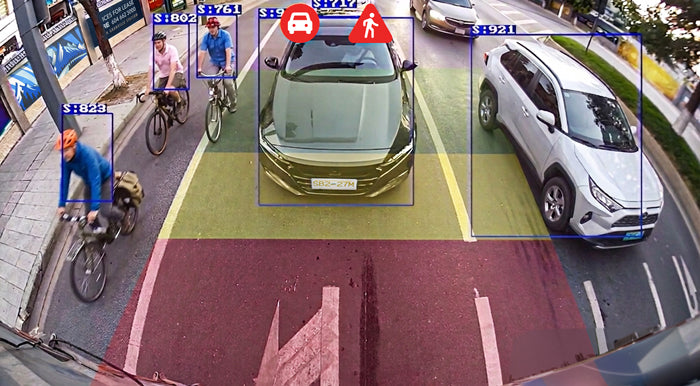

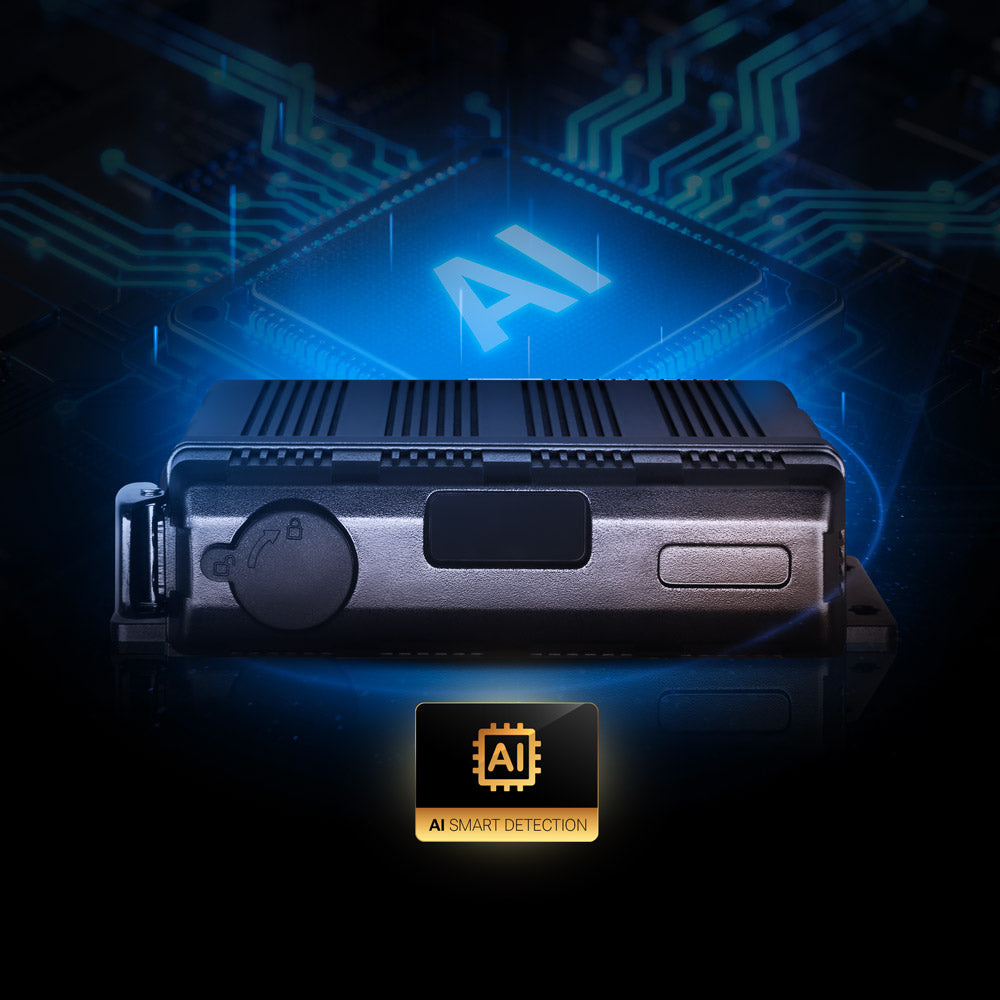

Intelligent Collision and Pedestrian Detection
Integrated HD cameras enable real-time detection of pedestrians and vehicles across the entire vehicle perimeter, including within stitching zones where blind spots pose the greatest risk. The built-in Forward Collision Warning (FCW) function continuously analyzes the distance and relative speed to the vehicle ahead, issuing timely alerts to prevent rear-end collisions, with no additional hardware required.

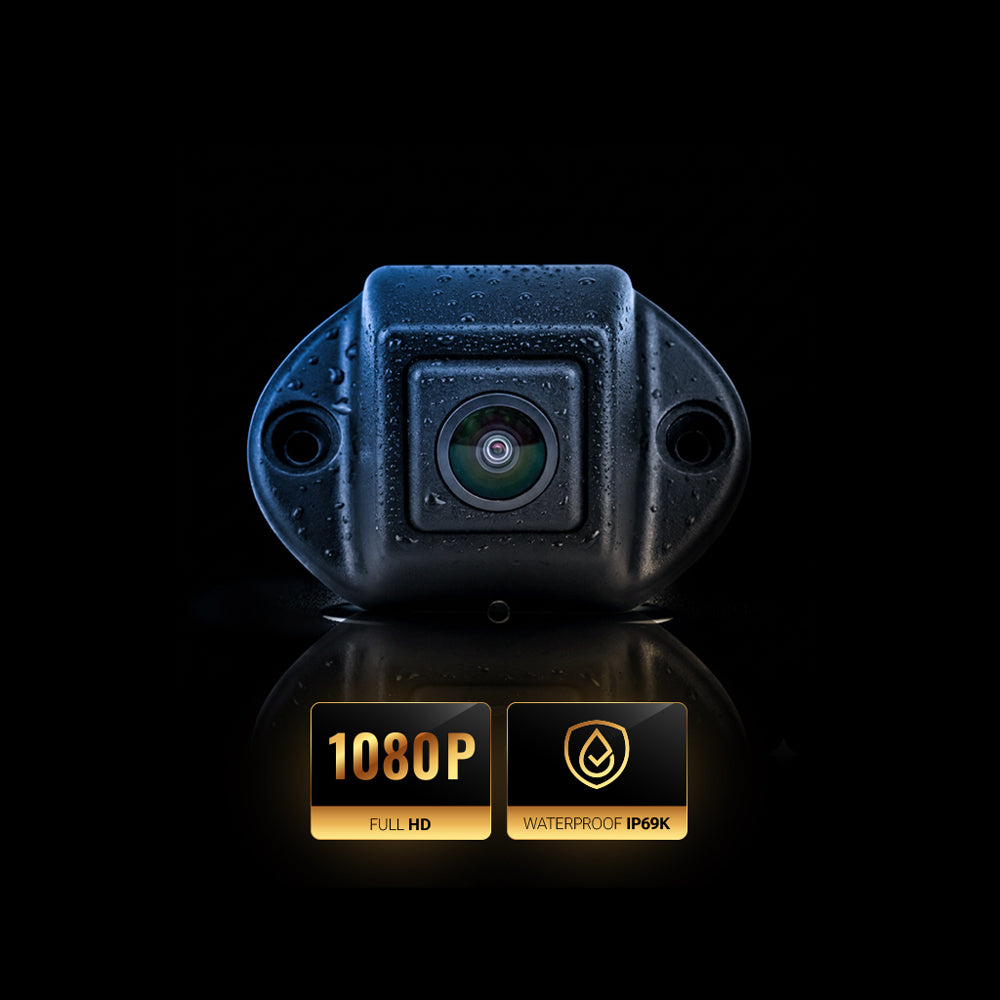

Built for Harsh Environments
Rated IP69K, the system's cameras are fully waterproof, dustproof, and shockproof, engineered to maintain consistent performance across the most demanding operating environments — from active construction sites to long-haul routes in extreme weather conditions

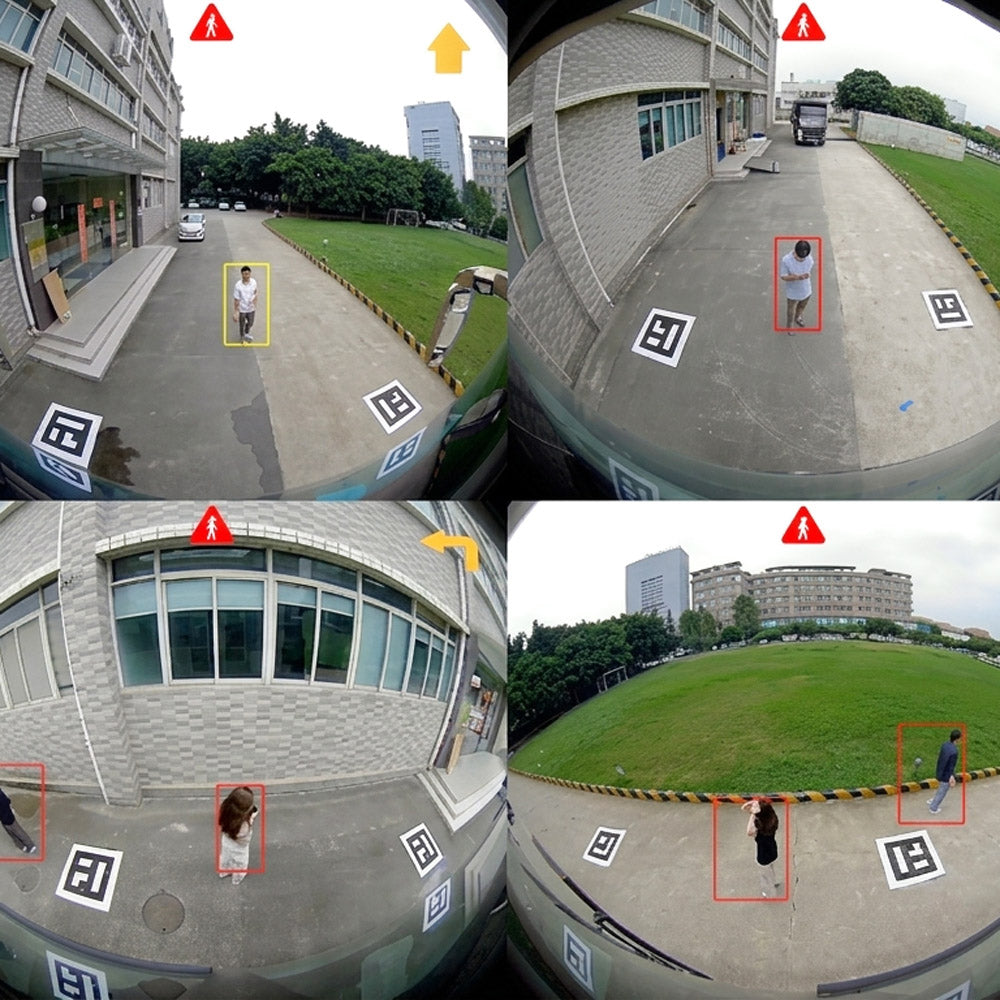

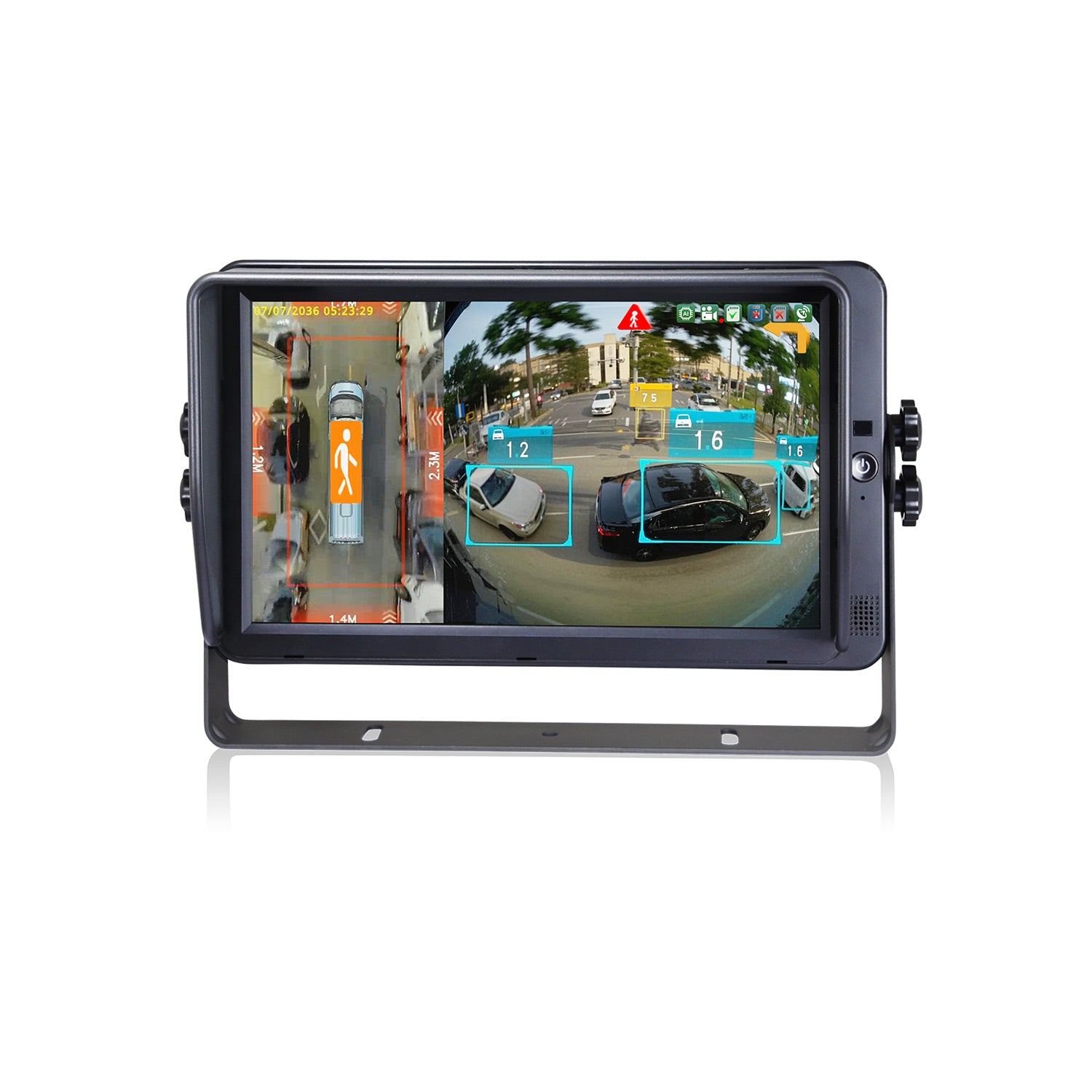

Flexible Viewing and Powerful Recording
Operators can switch freely between 3D and 2D panoramic views to suit any driving or maneuvering scenario. Backed by support for up to 512GB SD card and 2TB SSD storage, the system ensures uninterrupted, high-quality footage retention, providing dependable evidence and accountability whenever it is needed.
Radar Integration and Remote Fleet Management
Seamless radar integration enables real-time audio and visual obstacle warnings, actively protecting the full vehicle perimeter from potential hazards. Combined with 4G network connectivity, the system links directly to fleet management platforms, allowing operators to monitor and manage their entire vehicle fleet remotely from any location.
