Overview
Key Highlights
EVERY ANGLE COVERED. EVERY INCIDENT DOCUMENTED.
Irrefutable video. Every journey.
Commercial vehicles are disproportionately involved in blind spot incidents. The system eliminates those blind spots and creates a video record that protects your business from fraudulent claims and disputed liability.
Resolve claims faster. Negotiate better.
Fleets equipped with the system are better positioned to negotiate insurance premiums and resolve incidents quickly using on-board footage rather than costly legal disputes.
Real-time alerts. Zero blind spots
Whether in congested city streets, tight loading docks, or on the highway, drivers receive instant alerts for lane departure, forward collision, and merging hazards — reducing risk and driver stress.
Up and running in under 60 seconds.
Auto-calibration requires no specialist and completes in under one minute. A wide 10-32V voltage range means fast installation across mixed fleets with minimal vehicle downtime.
Specifications
| Specification | Detail |
|---|---|
| Video Input | Max. 4CH * 1080p @ 25/30fps |
| Display Mode | 2D / 3D switchable |
| Output Resolution | 1080P |
| Storage | 2 × 512GB SD card (up to 266hrs @ 720P/4CH) |
| Video Encoding | H.264, Max. 4CH × 1080P |
| Power Supply | 10–32V DC |
| Operating Current | < 2A / 12V |
| Operating Temp | -20°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 10%–90% |
| Night Vision | 0.1 lux (no IR required) |
| RTSP Latency | < 250ms |
| AI Compute(External) | Up to 8 TOPS |
| Radar Sensors | Up to 12 sensors; 24GHz mm Wave compatible |
| GPS | Optional |
Warranty
See Everything. Miss Nothing.
Eliminating the Areas You Can’t See
Blind spots represent the areas around a vehicle that drivers simply cannot see and they remain one of the most dangerous and overlooked risks in commercial driving.

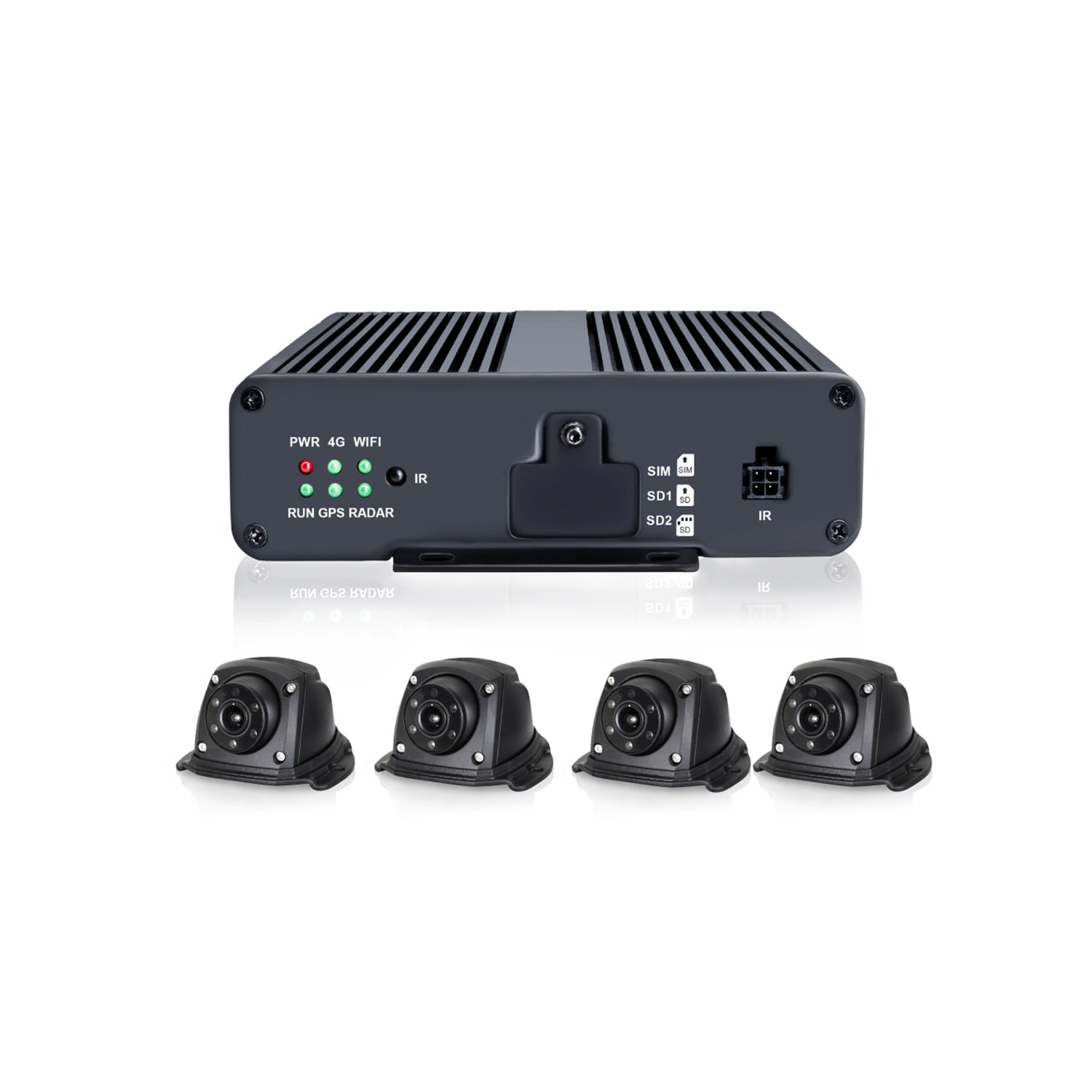

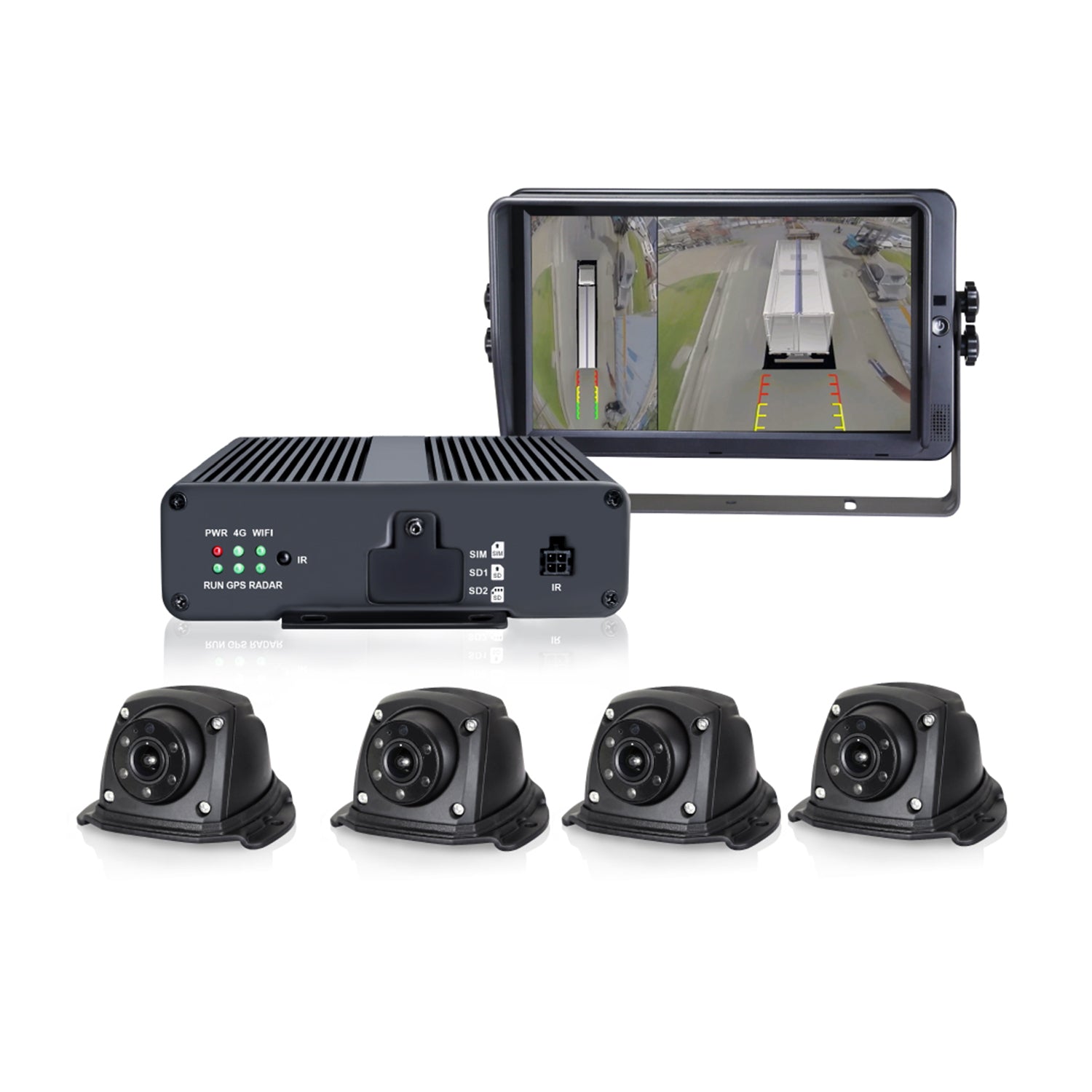

The EVOview 360 Panoramic View System was designed to solve this exact problem. Featuring four ultra-wide angle 1080P HD cameras seamlessly stitched together, it delivers a true 360° bird’s-eye view with zero blind spots. Built for demanding commercial environments, it transforms what was previously hidden into full, real-time visibility, helping drivers operate with complete awareness and confidence.

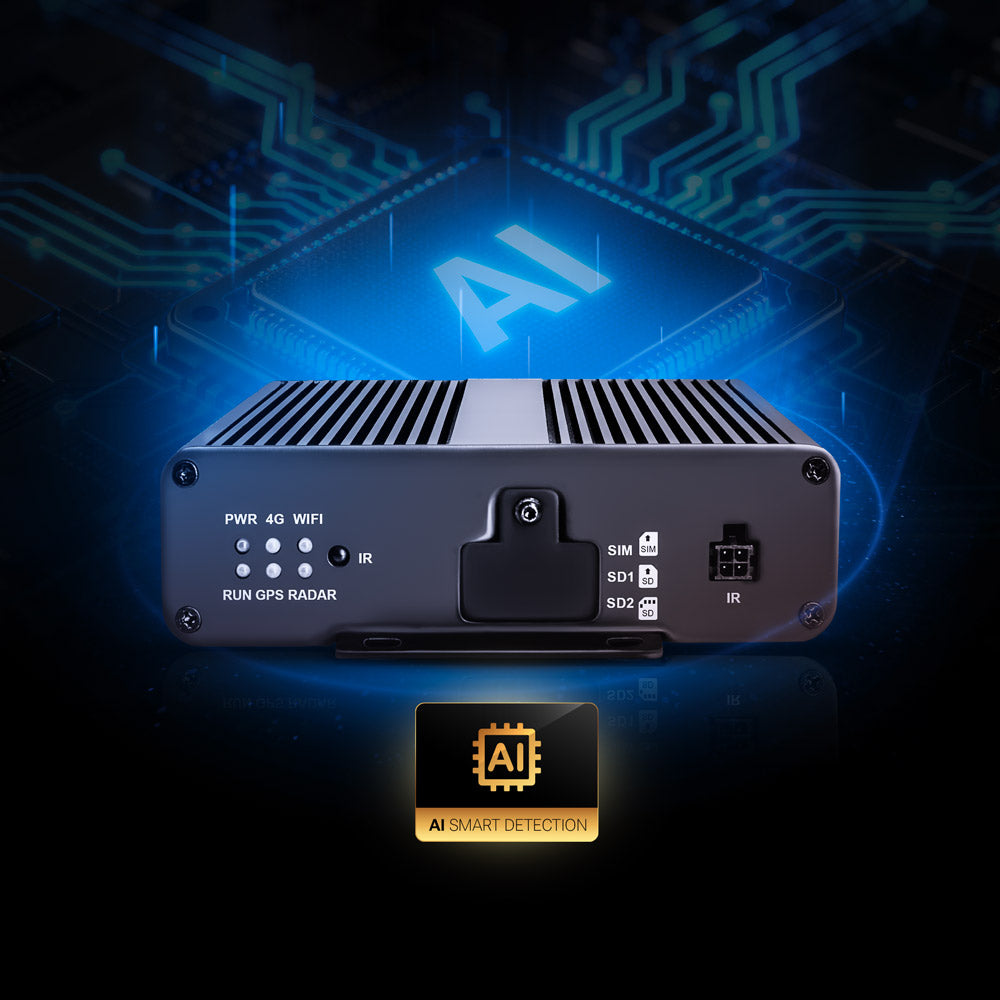

Built-in AI with Full Area Detection
The system's built-in AI algorithm integrates Lane Departure Warning (LDW), Forward Collision Warning (FCW), and Blind Spot Detection (BSD) across all sides of the vehicle simultaneously. Capable of detecting lane departures, forward collision risks, and vehicles overtaking or merging from any direction, it delivers intelligent, proactive alerts to keep drivers always informed and in control.
Advanced 3D Panoramic Image Technology

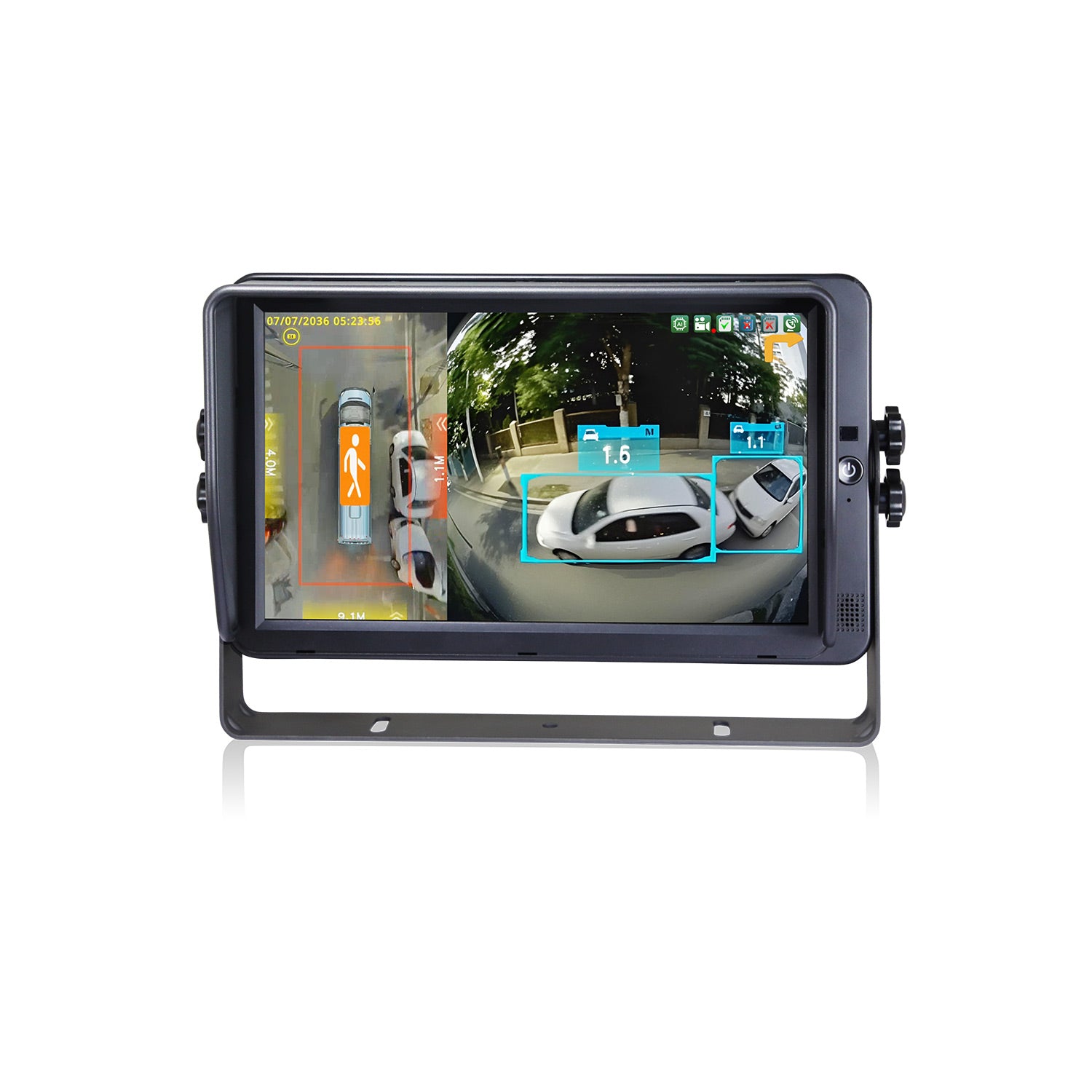

Using panoramic image synthesis technology, four 1080P full HD camera feeds are distortion-corrected and seamlessly stitched into a fully rendered 3D scene that accurately simulates real driving conditions. Unlike conventional around view systems, the transparent vehicle model ensures the road behind is never obscured, while the extended bird's-eye field of view provides an additional lane of visibility on both sides — significantly enhancing safety during lane changes and high-speed merging.

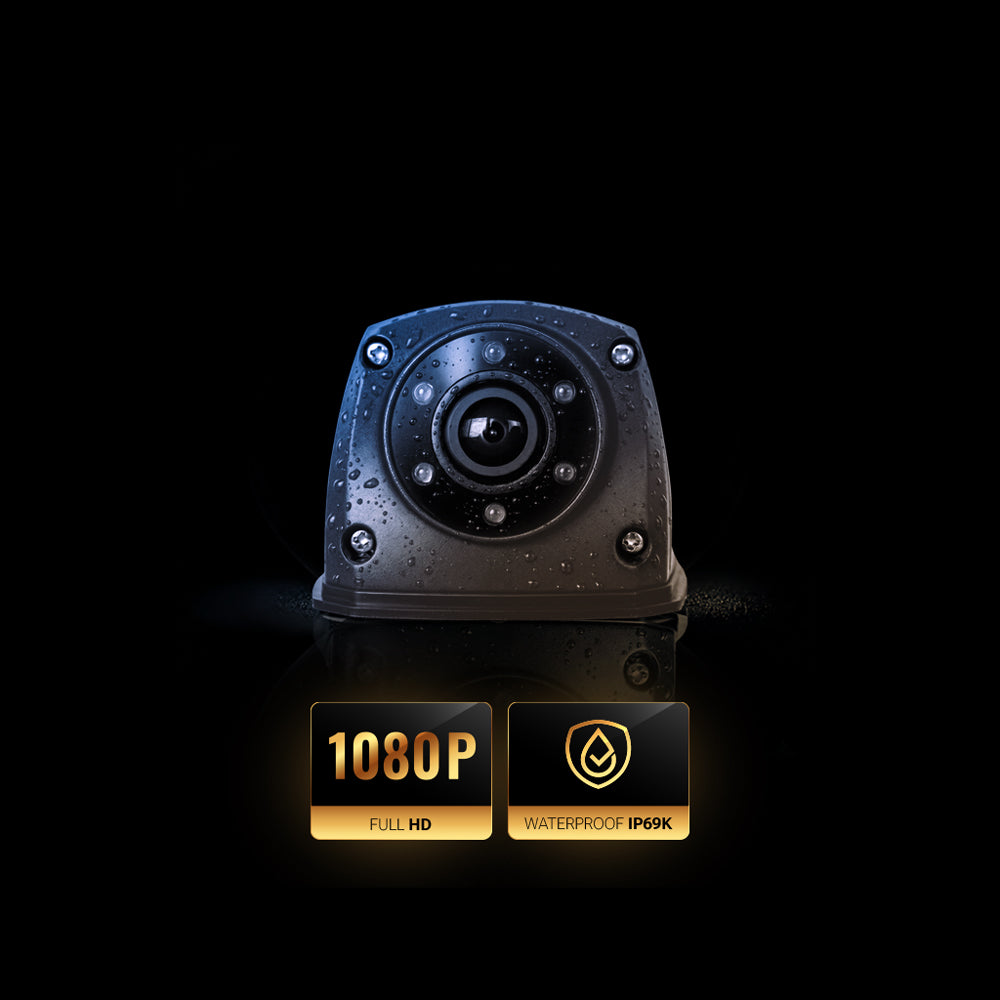

Built for Harsh Environments
Rated IP69K, the system's cameras are fully waterproof, dustproof, and shockproof, engineered to maintain consistent performance across the most demanding operating environments. From active construction sites to long-haul routes in extreme weather conditions.
Powerful Recording and Low Light Night Vision
The system supports dual 512GB SD cards, providing up to 266 hours of continuous 1280x720 recording at a 2Mbps transmission rate — ensuring comprehensive footage retention for evidence and accountability. Advanced low light night vision delivers a clear, full 360° view in insufficient lighting conditions without the need for infrared, keeping drivers confident and aware at any hour.
Radar Integration and Pedestrian Detection
Compatible with external AI pedestrian detection cameras at up to 8T processing power, the system detects vehicles and pedestrians within a range of up to 10 metres across the full vehicle perimeter. Seamless radar and parking sensor integration further enhances protection by overlaying real-time audio and visual warnings, actively alerting drivers to obstacles and potential hazards before they become a danger.
